Full Automatic Double Head Four Station Press Machine
MASBOND Full Automatic Double Head Four Station Press Machine MS-F2
It is the excellent heat transfer printing press for garment factory for production in massive

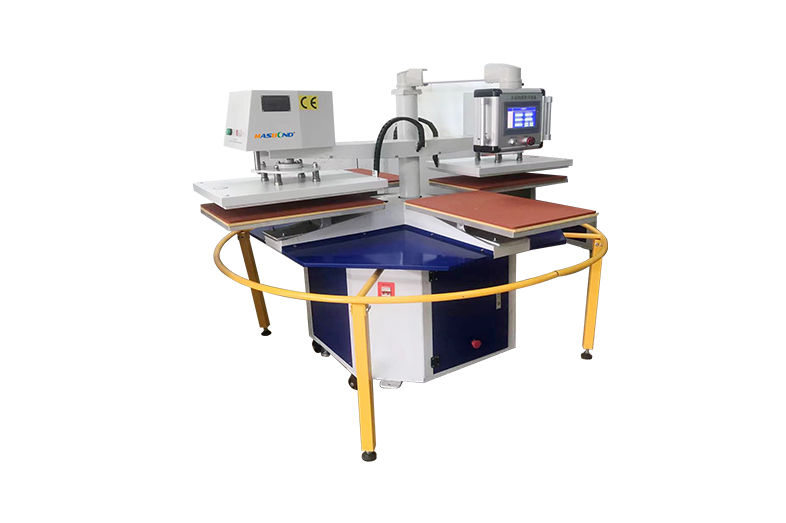

MASBOND Full Automatic Double Head Four Station Press Machine MS-F2
The fully automatic double-head four-position hot press machine is a device used in the clothing industry, typically employed for heat pressing on fabrics to secure patterns, logos, or other designs. Here's a brief overview of the equipment:
Working Principle: The hot press machine heats the heating plates to an appropriate temperature and applies pressure to bond materials such as patterns or logos onto the fabric. After heat pressing, the fabric can secure the pattern or logo, making it less likely to peel off or damage.
Structure: The fully automatic double-head four-position hot press machine typically consists of two independent working heads and four workstations. Each workstation is equipped with a heating plate and pressure system to simultaneously process multiple fabrics or different areas of fabric.
Automation Features: The equipment features full automation capabilities, allowing it to automatically carry out heating, pressure application, and release operations through preset programs, thereby increasing production efficiency and reducing labor costs. Some advanced models may also come with automatic fabric feeding and unloading systems to make the entire production process more efficient.
Temperature Control: The hot press machine is equipped with a temperature control system that can precisely control the temperature of the heating plates, ensuring the patterns or logos are firmly bonded to the fabric without damaging it.
Safety: To ensure the safety of operators, the hot press machine is typically equipped with safety devices such as emergency stop buttons and protective covers.
Applications: The fully automatic double-head four-position hot press machine is widely used in the clothing industry for applying patterns, logos, or decorations to various fabric products such as T-shirts, sportswear, hats, bags, and more.
Feature of MASBOND Full Automatic Double Head Four Station Press Machine：
Modular control, touch screen display, more intuitive and easy to operate.
Turntable operation, speed can be adjusted at will, waiting time can be set.
ndependent temperature control of double heating plates, which can be operated by a single person or two persons, with high efficiency.
Infrared positioning device for convenience.
Finished garments or cut pieces can be pressed on the U-shaped base for pressing.
Optional hydraulic or pneumatic pressurization.
Technical Parameters of MASBOND Full Automatic Double Head Four Station Press Machine：
| Voltage | 220V | Power | 5.5-8.5Kw |
| Heating Plate Size | 380*380mm | Net Weight | 360kg 380kg 400kg |
| Machine Size | 190*190*175cm | HS Code | 845130000 |
