Automatic Side Slit Sewing Machine
MASBOND Automatic Side Slit Sewing Machine MS-PZN02-JC01

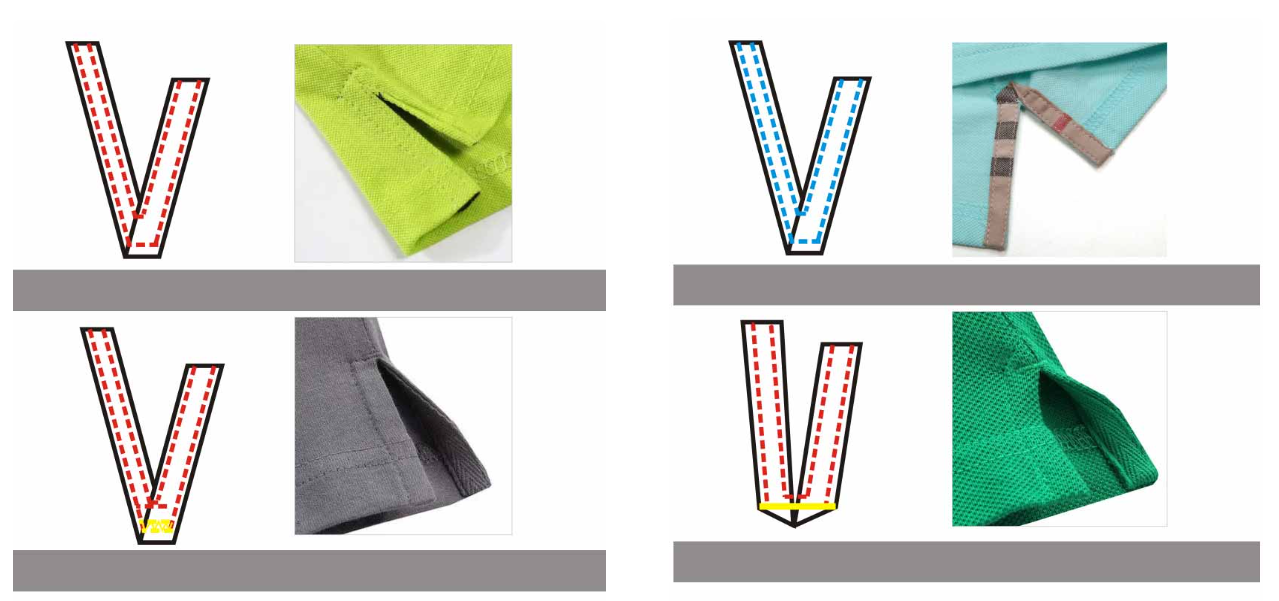

POLO shirt-hidden side slit, front side slit, original body side slit, binding side slit, flat top side slit, three pointed siden slit.

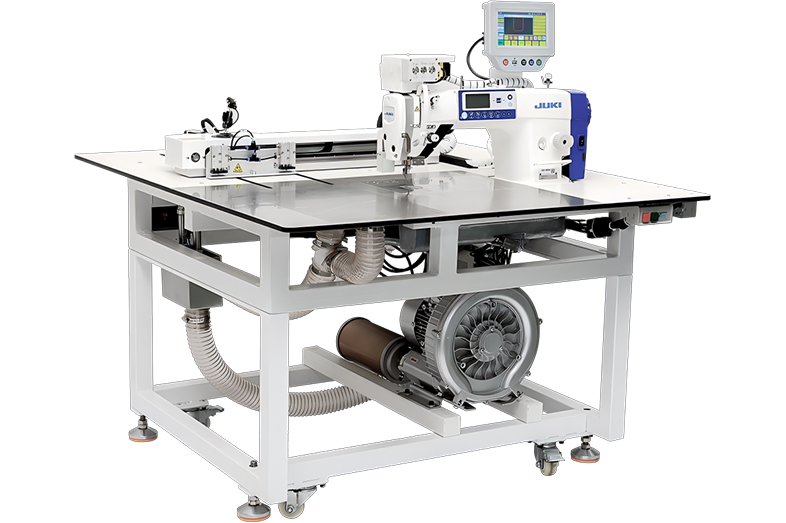

MASBOND Automatic Side Slit Sewing Machine MS-PZN02-JC01
Features of MASBOND Automatic Side Slit Sewing Machine MS-PZN02-JC01
Automatic lock stitch sewing, Accurate and fast, High speed and low noise
Automatic counting function
Automatic thread-breaking alarm function
Button thread end alarm function
Electronic presser foot function.
All functions of the pattern sewing machine (options, need to purchase separately)
Production process of MASBOND Automatic Side Slit Sewing Machine MS-PZN02-JC01
Select pre-programmed seams on the control panel.
Two pieces of side slit cloth are kept on tray table, fed and fold manually.
The side slit cloth has been folded and gets sewn fully automatic in one pass.
Technical Parameters of MASBOND Automatic Side Slit Sewing Machine MS-PZN02-JC01:
Dimensions | 1200(L) x 1180(W) x 1240(H)mm | Weight | 395kg |
Rated voltage | 220V / 1ph / 50~60hz | Head sewing speed | 100~3200RPM |
Power consumption | 1.1kw/h | Stitch Length | 0.5mm~6.0mm |
Production output | Up to 400 welted pockets in 8 hours | Air pressure | 0.5Mpa |
