Automatic Shirt Sleeve Placket Setter

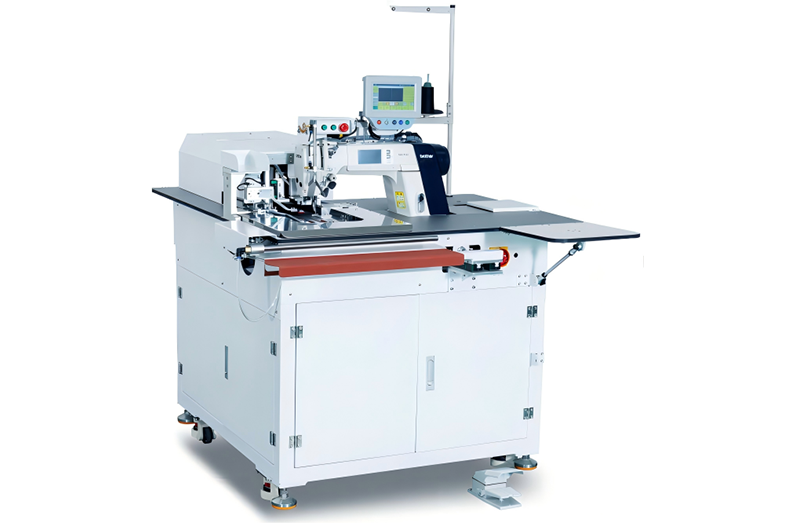

MASBOND Automatic Shirt Sleeve Placket Setter MS-PZN02-XC02
Wide range of application in different fabrics includes normal shirt fabric, non-iron shirt fabric and knitted fabric, both triangle head and flat head workable.
MASBOND Automatic Shirt Sleeve Placket Setter MS-PZN02-XC02
An automatic sleeve placket setter is a valuable tool that helps in attaching sleeve plackets to shirt sleeves, making the garment production process smoother.
In industrial and large-scale garment manufacturing settings, where time and efficiency are often under pressure, these machines can truly make a difference. They alleviate some of the burdens of attaching sleeve plackets, a task that can be quite tedious and labor-intensive when done by hand.
With features like automatic fabric feeding, cutting, folding, and stitching, these machines work diligently to ensure that every placket is attached accurately and efficiently. They are designed to handle a variety of fabric types and sleeve lengths, offering flexibility and adaptability to meet the diverse needs of garment production. By using an automatic sleeve placket setter, manufacturers can enhance their workflow and focus on creating high-quality garments, knowing that this task is in capable hands.
Automatic sleeve placket setters have features such as automatic fabric feeding, cutting, folding, and stitching to accurately and efficiently attach sleeve plackets to shirt sleeves. They are designed to work with a variety of fabric types and sleeve lengths, making them versatile tools for garment production.
Features of MASBOND Automatic Shirt Sleeve Placket Setter MS-PZN02-XC02:
The sewing machine head moves in the X-axis direction and sleeve mold moves in the Y-axis direction, which can meet the sewing accuracy.
Sleeve mold structure can make change quickly.
The lower support magnetic device can improve the stability of the sleeve folding.
Electronic follow-up auxiliary presser foot device to ensure the stability of sewing.
Wide range of applicable fabrics( Ordinary shirt fabrics, Non-iron shirt fabrics, Knitted fabrics, etc).
One machine can realize switching between left and right sleeves, No need to make additional molds.
Machinable sleeve length:50-200mm, Maximum width:50mm, Minimum width:18mm.
Technical Parameters of MASBOND Automatic Shirt Sleeve Placket Setter MS-PZN02-XC02:
Production output | Up to 600 sleeve placket in 8 hours | Power consumption | 0.29kw/h |
Stitch Length | 0.5mm~2.0mm | Rated voltage | 220V / 1ph / 50~60hz |
Head sewing speed | 300RPM | Weight | 395kg |
Dimensions | 1450(L) x 1240(W) x 1270(H)mm | Air source | 0.5Mpa(5kgf/cm2) |
| Machine head | Brother 7300A | Working area | 500mmx280mm |
