Automatic Rope Threading Machine

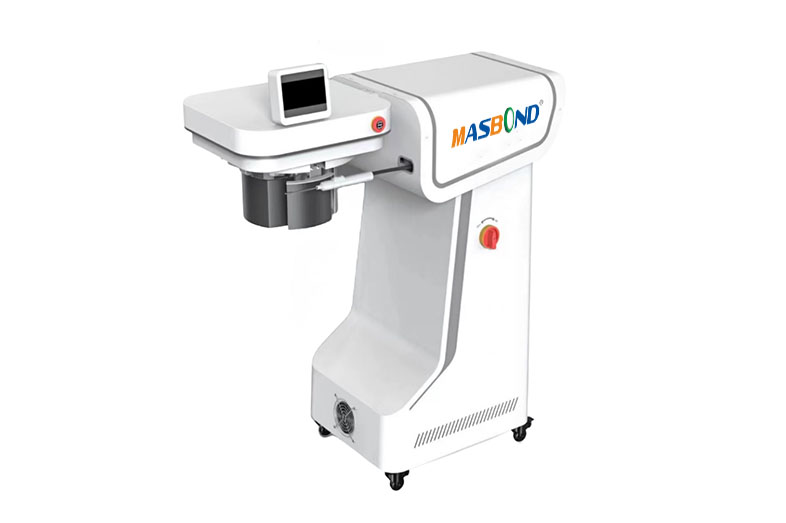

MASBOND Automatic Rope Threading Machine MS-24Z168
Automatically decrease the intensity of labor work increase the efficiency about 50-100%，8-10seconds/per cord，for Slacks, haodies, hats.
MASBOND Automatic Rope Threading Machine MS-24Z168
Overview of MASBOND Automatic Rope Threading Machine MS-24Z168：
Automatic rope threading machine is a device used to automatically thread ropes during the clothing manufacturing process. It is typically employed to add ropes or straps to areas such as the waist, cuffs, and collar of garments, enhancing their aesthetic appeal, structural integrity, and functionality.
Working Principle:
The automatic rope threading machine typically utilizes an automated control system to control the threading path and fixing method of the rope through preset programs. Sensors are commonly used to detect the position and size of the garment, ensuring that the rope is correctly installed on the clothing. Usually driven by an electric motor, it can achieve high-speed and precise threading operations.
Operation Method:

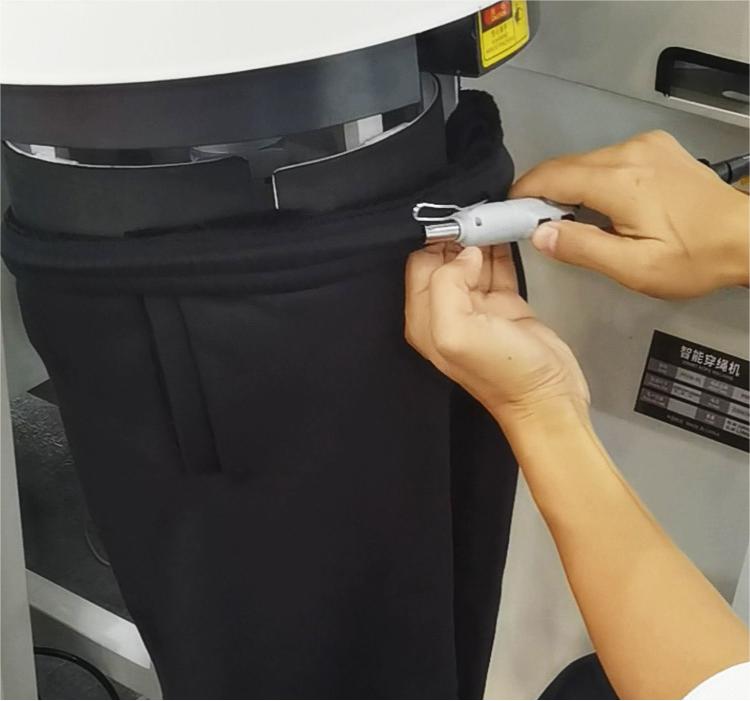

Operators usually set the parameters of threading, such as the length, position, and penetration method of the rope, through a control panel or computer interface. After setting the parameters, operators place the garment to be processed in the machine's working area and start the machine to complete the threading process.
Applicable Range:
The automatic rope threading machine is suitable for various types of garment manufacturing, including shirts, trousers, jackets, etc. It can be used for various materials of clothing, such as cotton, polyester, silk, etc., and various shapes and sizes of garments.
Advantages of MASBOND Automatic Rope Threading Machine MS-24Z168：
Expansion mechanism: It can be rotated 90 degrees, and the lifting height can be adjusted, which can adapt to the working habits of different groups of people.
Expansion plate: The working angle can be adjusted by 90 degrees, and the special craft jig for the zipper hoodie is standard.
The working range of the expansion tray: any choice in the clothing size preset storage system.
Reduce labor intensity and get rid of the dependence on skilled labor.
One machine for multiple purposes: one-key switching between sweatpants and hoodies.
Rope threading mode: semi-automatic and fully automatic one-button switching.
Rope threading speed: The rope threading/out rope speed can be adjusted through the touch screen
Rope threading strength: real-time detection of rope threading strength, to avoid clothing damage due to excessive strength when threading the rope to the seam interface.
Application of MASBOND Automatic Rope Threading Machine MS-24Z168：

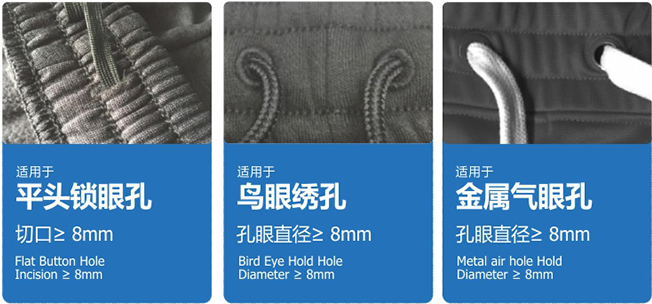

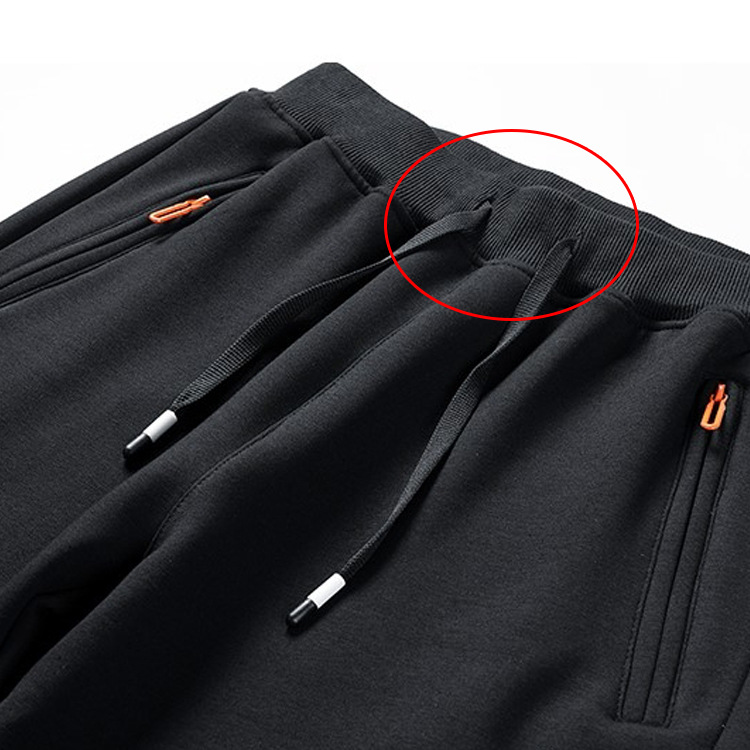

It is suitable for the threading process of flat buttonholes, round eyelets, metal round eyelets such as pullovers, casual pants, and zipper hoodies.
Technical Parameters of MASBOND Automatic Rope Threading Machine MS-24Z168
| Pants diameter | φ191mm-φ445mm | Air pressure | 0.5Mpa、0.5L/min |
| Cap diameter | φ116mm-φ121mm | Weight | 200Kg |
| Cord hole type | Flat buttonhole＞8mm; bird eye embroidery hole＞5mm, metal air hole＞5mm | Dimensions | 1170×520×1087mm（L×W×H） |
| String dismeter | Round rope: 5mm-6mm Flat rope: 5mm-9mm | Voltage | Single phase 200-240V |
