Automatic Pocket Setting Machine

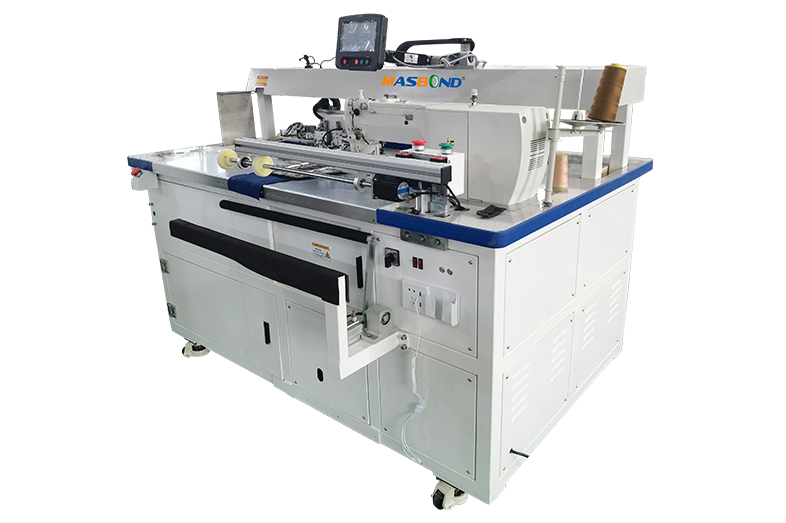

MASBOND Full-Automatic Pocket Setting Machine MS-D3
Applicable for all types of clothes to set pocket
MASBOND Full-Automatic Pocket Setting Machine MS-D3
Overview of MASBOND Full-Automatic Pocket Setting Machine MS-D3:
The fully automatic pocket attaching machine is an essential piece of equipment in the modern clothing manufacturing industry, significantly enhancing production efficiency and quality through its precise operation and high-performance capabilities. As a highly automated production device, the fully automatic pocket attaching machine plays an indispensable role in the clothing manufacturing process.
The primary function of the fully automatic pocket attaching machine is to automatically attach pre-cut pockets to the corresponding positions on garments. During this process, the machine achieves precise positioning and attachment of the pockets through an accurate control system. Additionally, the fully automatic pocket attaching machine boasts various functionalities such as automatic feeding, automatic positioning, and automatic attachment, making the entire pocket attaching process more efficient and precise.
The precision of the fully automatic pocket attaching machine is demonstrated in several aspects. Firstly, the machine's control system utilizes advanced algorithms and sensor technology to accurately identify and position the pockets. Secondly, the machine features automatic adjustment capabilities, enabling adaptive adjustments based on the specifications and materials of different pockets to ensure precision and quality in pocket attachment. Lastly, the user-friendly operating interface of the fully automatic pocket attaching machine allows operators to easily grasp the machine's operation and maintenance techniques, further enhancing its precision and stability.
The introduction of the fully automatic pocket attaching machine not only improves production efficiency and quality but also reduces production and labor costs. With the continuous advancement of technology and the increasing competition in the clothing market, the fully automatic pocket attaching machine will continue to play an increasingly important role in driving the clothing manufacturing industry towards higher efficiency, precision, and automation.
Feature of MASBOND Full-Automatic Pocket Setting Machine MS-D3：
Highly efficiency, 6-8 pockets/minute.
Low requirement on the experienced workers.
With suction system to hold fabric firmly.
Stainless steel working bed to ensure the cleanness of the fabric.
Automatic folding, stitching, bar-tacking and trimming etc,free of ironing.
Technical Parameters of MASBOND Full-Automatic Pocket Setting Machine MS-D3：
| Voltage | 220V | Power | 1.5Kw |
| Air Source | 0.5Mpa | Net Weight | 650kg |
| Max Sewing Speed | 3500rpm | Machine Needle | DP*17-DP*5 |
| Sewing Stitch Programming | Touch Screen | Line Programming Storage capacity | Up to 999 kinds of patterns |
| Stitch Distance | Stitch Distance | Pressure Foot Rising Height | 23mm |
| Sewing Pocket Range | 6-8 pockets per minute | Folding Method | Double Cylinder folder in 7 directions works simultaneously to fold bags |
| Pneumatic Element | AirTac | Feeding Drive Mode | DELTA Servo Motor drive(750W) |
