Can realize a series of actions such as 9 buckles drawing-in, automatic strap cutting, 8 buckles drawing-in, folding knot, 8 buckles returning, material collecting.

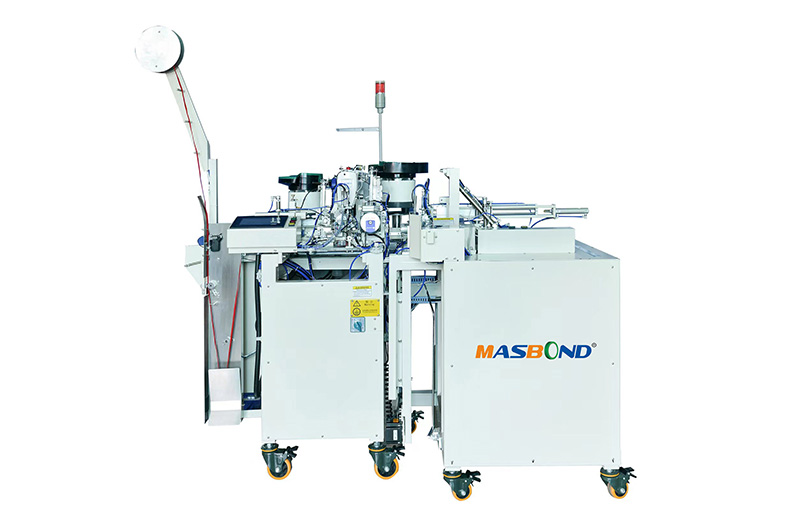

Overview of Full Automatic Shoulder Strap Attaching&Sewing Machine MS-24600A:
The fully automatic bra strap sewing and cutting machine is a device used for producing bra straps, primarily employed in sewing and cutting operations for bra straps. It effortlessly resolves the challenges of manual processes such as numerous steps, cutting errors, time consumption, labor intensiveness, and material wastage, thereby reducing costs associated with personnel, equipment, and material losses. It significantly enhances productivity and efficiency. Below is a detailed introduction to this equipment:
Principle of Operation: The fully automatic bra strap sewing and cutting machine utilizes advanced automation technology to autonomously complete the sewing and cutting tasks for bra straps. By configuring parameters and programs, the machine accurately sews the ends of bra straps and performs precise cuts at appropriate positions, ensuring uniform length and quality for each strap.
Efficient Production: With its fully automated design, the machine can continuously produce a large quantity of bra straps in a short period, thereby improving production efficiency to meet the demands of mass production.
High Precision Processing: The machine can precisely control the sewing and cutting positions, lengths, and angles, ensuring that each bra strap meets the required dimensions and shapes, achieving high-precision processing standards.
Versatility: In addition to sewing and cutting functions, some fully automatic bra strap sewing and cutting machines may offer additional features such as automatic adjustment of strap length and automatic thread changing, which can be customized to meet various production requirements.
Ease of Operation: The operation of the fully automatic bra strap sewing and cutting machine is straightforward. With parameters and programs set, the machine can operate automatically according to predetermined processes, eliminating the need for complex operating procedures and reducing the technical requirements for operators, thereby enhancing production efficiency.
Stability and Reliability: Through precise design and stringent quality control, the performance of the fully automatic bra strap sewing and cutting machine is stable and reliable. It can operate continuously for extended periods without encountering faults, providing stable production support for manufacturing enterprises.
Feature of Full Automatic Shoulder Strap Attaching&Sewing Machine MS-24600A:
It has switchable automatic and manual mode, and has a number of fault alarm automatic shutdown functions;
Functions such as thread breaking detection, material joint detection、Shoulder strap sticking detection and so on.
The machine can adjust the mould flexibly according to the specific requirements of customers and produce shoulder straps with different widths.
Moulds of different buckle type can be ed to produce 8 0 buckle, 8 8 buckle, 8 9 buckle, 8 Mommy buckle and so on. Various non-standard buckle moulds can also be developed for customers'' requirements.
Technical Parameters of MASBOND Full Automatic Shoulder Strap Attaching&Sewing Machine MS-24600A:
Model | MS-24600A | The wide of shoulder strap | 8-30mm(Wider than 20mm needs to be customized) |
Product Description | Cold knife cut and sewing& Ultrasonic cut and sewing | Control System | Microcomputer control |
Power used | 220V Single phase50/60Hz ( must be a earth wire ) | Productivity | 5seconds/piece ( To the complete shoulder strap size is300mm ) |
Working air pressure | 0.5Mpa(5Kgf/cm²) | Finished size | 220-600mm |
Machine head | JUKI LK-1900 | Machine dimesion | 1835*1205*1430MM |
Feel free to have a quote on our tapes, we will reply within 48 hours.
