Fabric Cup Molding Machine

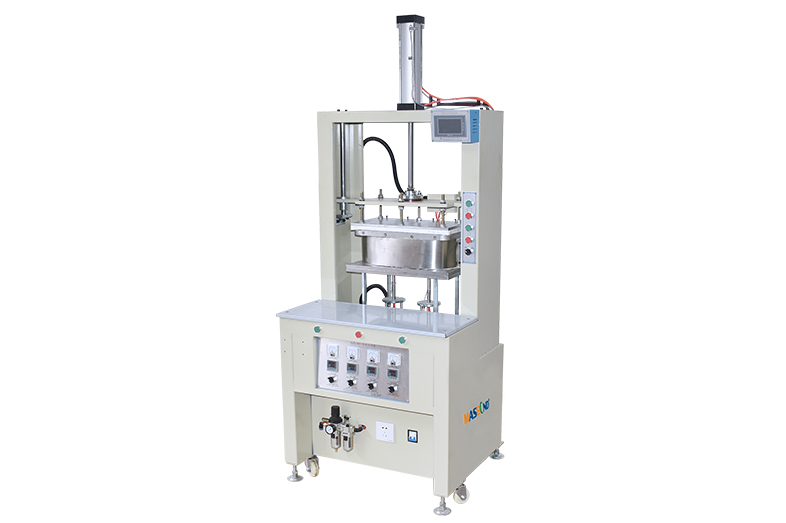

MASBOND Fabric Cup Moulding Machine MS-851

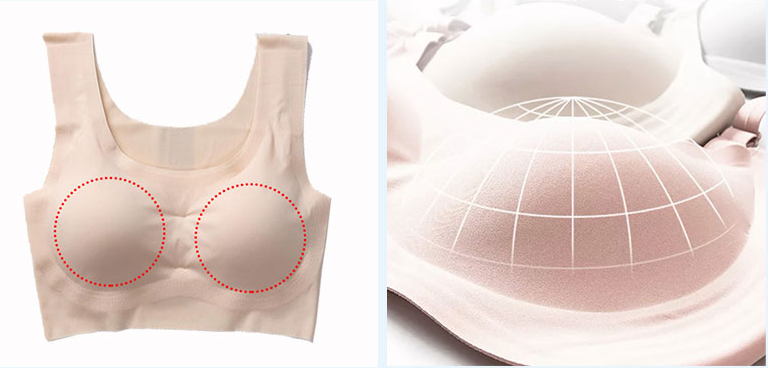

Moulding cups for various lingerie fabrics.
MASBOND Fabric Cup Moulding Machine MS-851
Usage of machine of MASBOND Fabric Cup Moulding Machine MS-851：

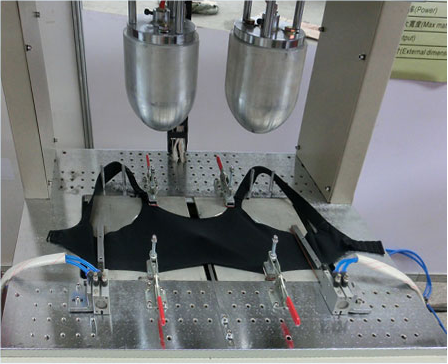

It is able to mold rigid fabric cup ( non stretch fabric ) and also elastic fabric cup and space fabric etc. As it is using conical shaped moulds with adjustable molding depth, so it can mold elastic fabric to get suitable cup shape for matching the foam cup shape for stitching & sewing them together.
Merits：Machine equipped with air cylinder pressing plates and convinient to control fabric tension and reduce and avoid fabric pulling while molding.
Features of MASBOND Fabric Cup Moulding Machine MS-851：
(1) The bullet head can be replaced freely according to the different requirements.
(2) It is easy to operate and it is of time-saving and consistent molding.
(3) The buttons are controlled by both hands, ensuring the production safety.
(4) To direct at the specific temperature control system in the development of bra cups production, we utilize silicon controlled phase shifting triggering current to control heating. So, it can make the temperature more even and steady with remarkable energy-saving efficiency and it will prolong the heating pipe's service life.
Parameter Technical Parameters of MASBOND Fabric Cup Moulding Machine MS-851：
| Voltage | 220V/50-60Hz | Power | 4Kw |
| Air Pressure | 0.4-0.8Mpa | Net Weight | 300kg |
| Mould Size | 500*300mm | Molding Time | 0-999s |
| Machine Dimension | 70*60*205cm | HS Code | 8451800003 |
