Collar Cold&Hot Press Machine

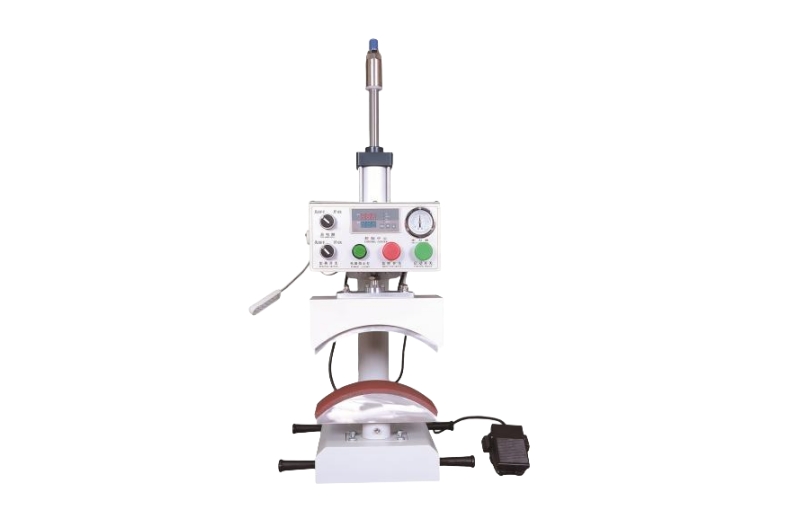

MASBOND Collar&Hot Press Machine MS-24R168
Suitable for men's and women's suits, shirts, etc.
MASBOND Collar&Hot Press Machine MS-24R168
Advantage of MASBOND Collar Cold & Hot Press Machine MS-24R185:
The collar cold and hot press machine is a specialized equipment used to handle components of clothing such as collars and cuffs. It fixes fabrics and materials into the desired shape and texture through heating and cooling methods. Below is a detailed introduction to the collar cold and hot press machine:
Working Principle:
The collar cold and hot press machine utilizes thermal pressing technology. It heats components like collars and cuffs to a certain temperature using a heating panel. Then, pressure is applied, making the fibers of the fabric soft under high temperatures. Simultaneously, a cooling system is employed to quickly fix them into the desired shape and size.
Main Components:
Heating Panel: Used to heat fabrics and materials.
Pressure System: Provides pressure to ensure proper contact between the fabric and the heating panel.
Control System: Used to set parameters such as heating temperature, pressure, and processing time.
Cooling System: Employed to rapidly reduce the temperature, fixing the shape of the fabric.
Conveying System: Used to feed in and discharge collars and cuffs for processing.
Operation Process:
Place the collars and cuffs to be processed onto the heating panel.
Set parameters such as heating temperature, pressure, and processing time.
Start the equipment; the heating panel begins heating, raising the fabric's temperature to the set level.
Once the set temperature is reached, apply pressure to ensure full contact between the fabric and the heating panel, maintaining it for a certain duration.
After the thermal pressing is complete, activate the cooling system to rapidly reduce the temperature, fixing the fabric's shape.
Retrieve the processed collars and cuffs, tidy them up, and proceed to the next step of processing or packaging.
Application Fields:
The collar cold and hot press machine is widely used in the garment manufacturing industry, especially in the production processes of high-end custom clothing, suits, shirts, etc. It is used to fix the shape of collars and cuffs, enhancing product quality and appearance.
Advantages:
Improves garment processing efficiency, reducing processing time.
Enables precise control of temperature and pressure, ensuring processing quality stability.
Utilizing the cooling system allows for rapid fixation of fabric shapes, enhancing production efficiency.
Suitable for various types of fabrics and materials, exhibiting strong versatility.
The collar cold and hot press machine plays a crucial role in the garment manufacturing industry. It not only improves product quality and appearance but also enhances production efficiency and reduces production costs. It is an indispensable key equipment in the modern garment production process.
Technical Parameters of MASBOND Collar Cold & Hot Press Machine MS-24R185:
| Model | MS-24R185 | Timing | 0~999s |
| Working area | 250x100xR185m | Voltage/Power | AC200V/900W |
| Temperature range | Normal temperature~400℃ | Compressed air | 2~5.5kg/cm² |
| Cylinder stroke | SC63x125mm | Overall Dimension | 410mm(L)*500mm(W)*820mm(H) |
