Automatic Snap Button Eye Punching&Attaching Machine

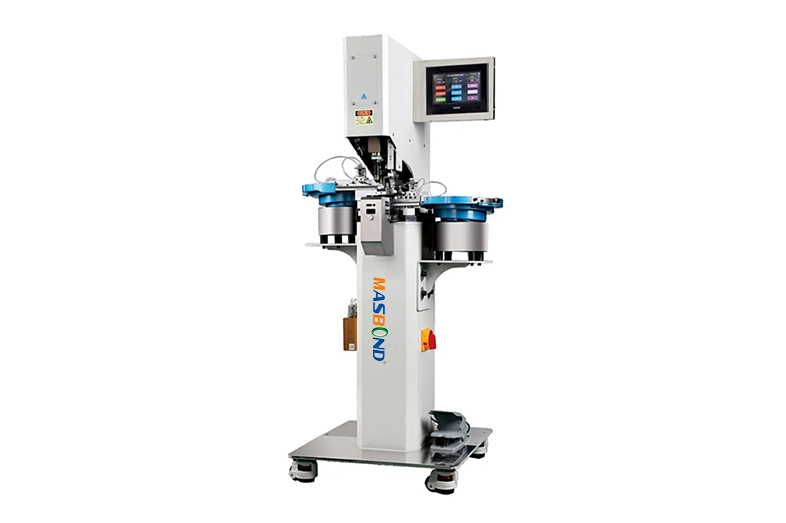

MASBOND Automatic Snap Button Eye Punching And Attaching Machine MS-24718
Snap Button Eye Punching for clothing, bags, handbags, leather goods, belts, footwear, handicrafts, etc.
MASBOND Automatic Snap Button Eye Punching And Attaching Machine MS-24718
Overview of MASBOND Automatic Snap Button Eye Punching&Attaching Machine：
Automatic snap button eyelet punching machine is a device used in the clothing manufacturing process to automatically punch snap button eyelets. snap button eyelets are typically used at the eyelet positions of garments to securely fasten buttons onto clothing. Here's a brief introduction to this equipment:
Working Principle: The automatic snap button eyelet punching machine utilizes an automated control system to employ punching processes to punch metal eyelets onto the eyelet positions of clothing. Typically, the movement trajectory and pressure of the punching head are controlled through preset programs to ensure accurate positioning and secure fixation of the eyelets.
Operation Method: Operators usually set the parameters of the punching, such as the size and position of the eyelets, through a control panel or computer interface. After setting the parameters, operators place the garment to be processed in the machine's working area and start the machine to complete the punching process.
Applicable Range: The automatic snap button eyelet punching machine is suitable for various types of garment manufacturing, including shirts, trousers, jackets, etc. It can be used for various materials of clothing, such as cotton, polyester, silk, etc., and various shapes and sizes of garments.
Advantages: The automatic snap button eyelet punching machine can improve production efficiency, reduce manual operation time and costs. The punching process is precise and stable, ensuring product quality and appearance. At the same time, it also enhances the flexibility and applicability of the production line.
Performance characteristics of MASBOND Automatic Snap Button Eye Punching&Attaching Machine :
High efficiency: 4 - 6 times more than the manual buckling machine, normal riveting frequency of about 150 times per minute.
Safety: punch safety protection device, more effective protection of the operator's finger safety.
Loss reduction: uniform air pressure riveting, eliminating the human force uneven riveting caused by unqualified, so that the product qualification rate of 99.9%.
Energy saving and environmental protection: pneumatic working principle of low carbon and environmental protection, standby overtime automatic power-off settings, always save energy.
Convenient: (PLC) interface is simple and easy to learn, fastener interchangeable operation is fast, the upper and lower fastener mould replacement is more convenient.

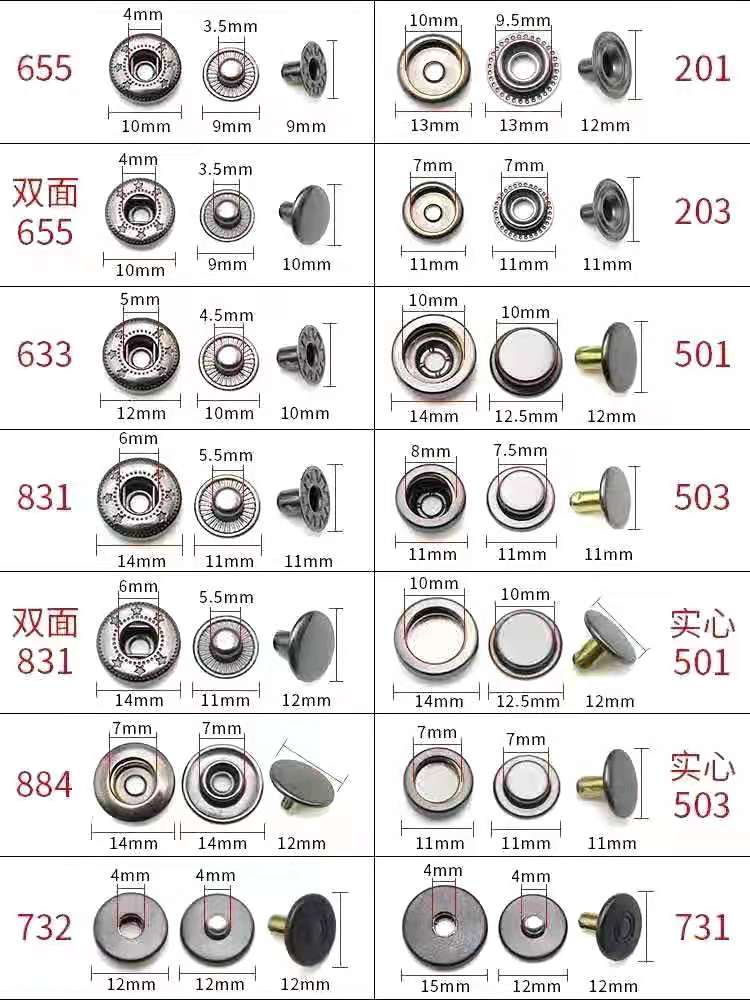

Wide range of fasteners: applicable to a variety of shaped metal buttons (such as spikes.). Square button. Bucket. Half-round).
Counting function: can be output statistics.
Infrared positioning: the riveted parts can be accurately targeted positioning.
Technical Parameters of MASBOND Automatic Snap Button Eye Punching&Attaching Machine：
| Drive mode | Servo motor | Motor frequency | 50/60 Hz |
| Motor Power | 0.75Kw | Working throat depth | 80 mm |
| Motor voltage | 220V | Working helght | 35 mm |
| Working speed | 45 times/minute | Dimensions | 560XB30X1260MM |
| Body weight | 165kg |
