Automatic Bra Hook&Eye Sewing Machine

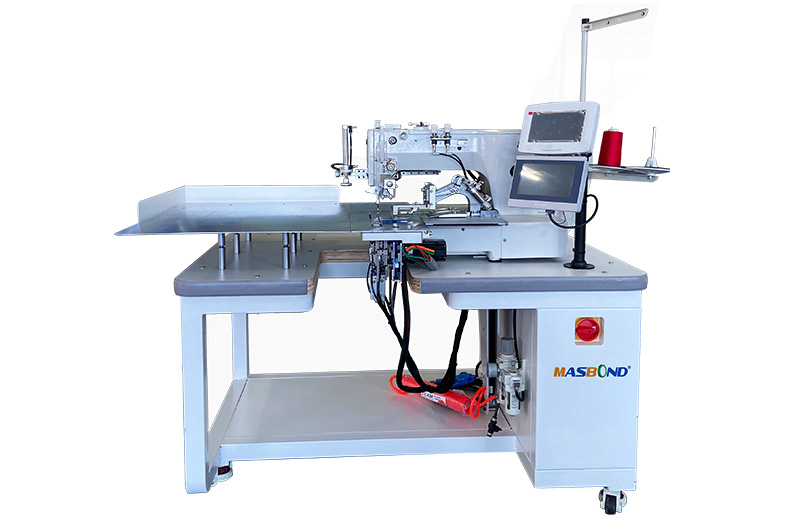

MASBOND Full Automatic Bra Hook&Eye Sewing Machine MS-24329SM

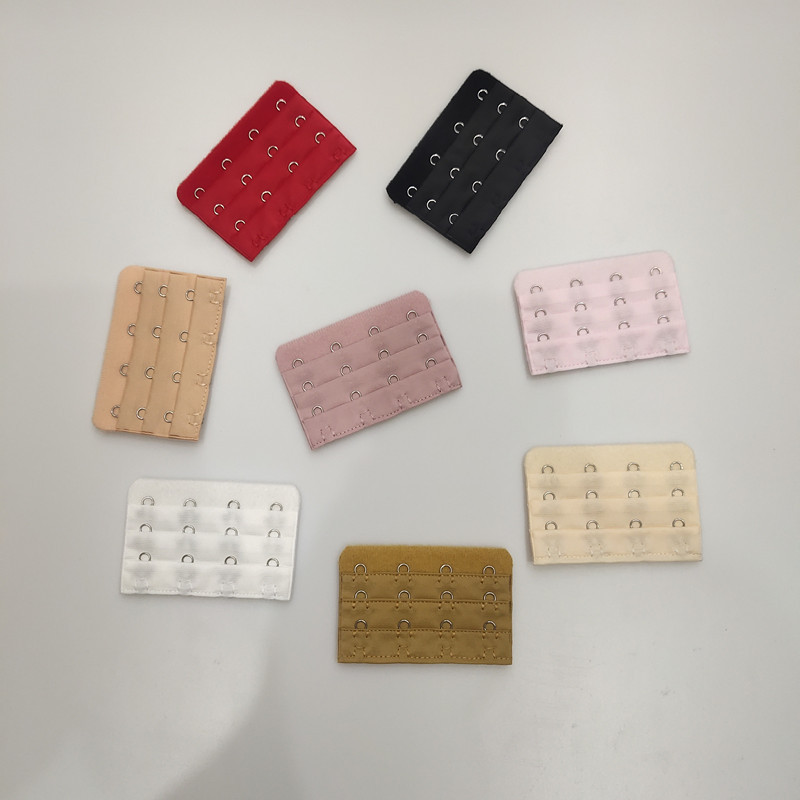

Suitable for 2 rows, 3 rows and 4 rows of underwear back buckle
MASBOND Full Automatic Bra Hook&Eye Sewing Machine MS-24329SM
Overview of MASBOND Full Automatic Bra Hook&Eye Sewing Machine MS-24329SM：
The fully automatic bra clasp machine is an intelligent device that combines efficiency, precision, and labour-saving features. It has emerged as a prominent solution in the lingerie manufacturing industry in recent years. Utilising cutting-edge artificial intelligence and mechanical automation technology, it provides a new production solution for lingerie manufacturers.
The machine utilises automation technology to precisely and rapidly install bra clasp components. Using preset parameters and programs, the machine accurately attaches the clasp parts to the lingerie, ensuring precise and secure positioning.
In terms of production efficiency, the fully automatic bra clasp machine, with its automated design, can install a large quantity of bra clasps in a short time, significantly improving production efficiency to meet the demands of mass production.
Regarding processing precision, the machine strictly controls the installation position, angle, and force of the clasp to ensure that each clasp meets high precision standards. This guarantees the quality and comfort of the lingerie.
Additionally, the fully automatic bra clasp machine is versatile and customizable to meet production needs. It can automatically adjust clasp positions and replace clasp types according to different production scenarios.
Operationally, the machine is designed to be simple and user-friendly, eliminating the need for complex operating procedures and reducing the technical requirements for operators. This makes production more efficient and convenient.
Moreover, through precise design and stringent quality control, the fully automatic bra clasp machine exhibits stable and reliable performance. It is capable of prolonged operation without encountering faults, providing stable production support for manufacturing enterprises.
Feature of MASBOND Full Automatic Bra Hook&Eye Sewing Machine MS-24329SM：
Automatic identification of long buckles and short buckles, accurate measurement of the size of the back buckle, automatic deviation correction, uniform and symmetrical locking on both sides.
Quickly and intelligently match pattern data, and automatically identify and replace patterns.

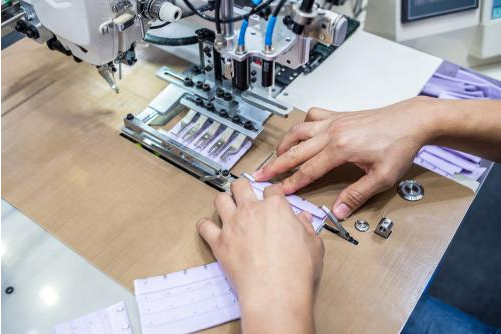

Operator places the material according to the laser pointer guidance, then press the first start button to clamp one end, and the other button to clamp and hold the other end, lastly press the button number three to start sewing process until the overall process is done.
And during the sewing process, the operator can also start to prepare the preparation of the next load, which is very effective and efficient to increase the production output very significantly.
Intuitionistic and concise operation interface, easy to learn and understand, support automatic cycle work make more high efficiency
Technical Parameters MASBOND Full Automatic Bra Hook&Eye Sewing Machine MS-24329SM：
Extemal dimension | 1200mm*810mm* 1100mm(H) | Servo motor | 750W AC Servo Motor |
Voltage/Power | 220V/1.8KW | Sewing width | 1-35mm |
Production Capacity | 360 pcs/H | Sewing length | 20-80mm |
Air Supply | 0.4~0.8Mpa | Height of presser foot | 12mm |
Stitch Density | 0.05-12.7mm | Weight | 170KG |
| Max sewing speed | 2800RPM | Suitable needle | DPX17/DPX5 |
